Description

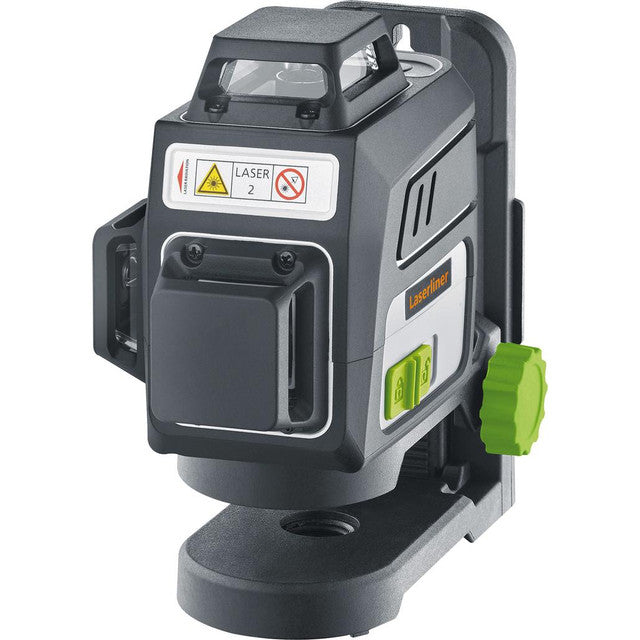

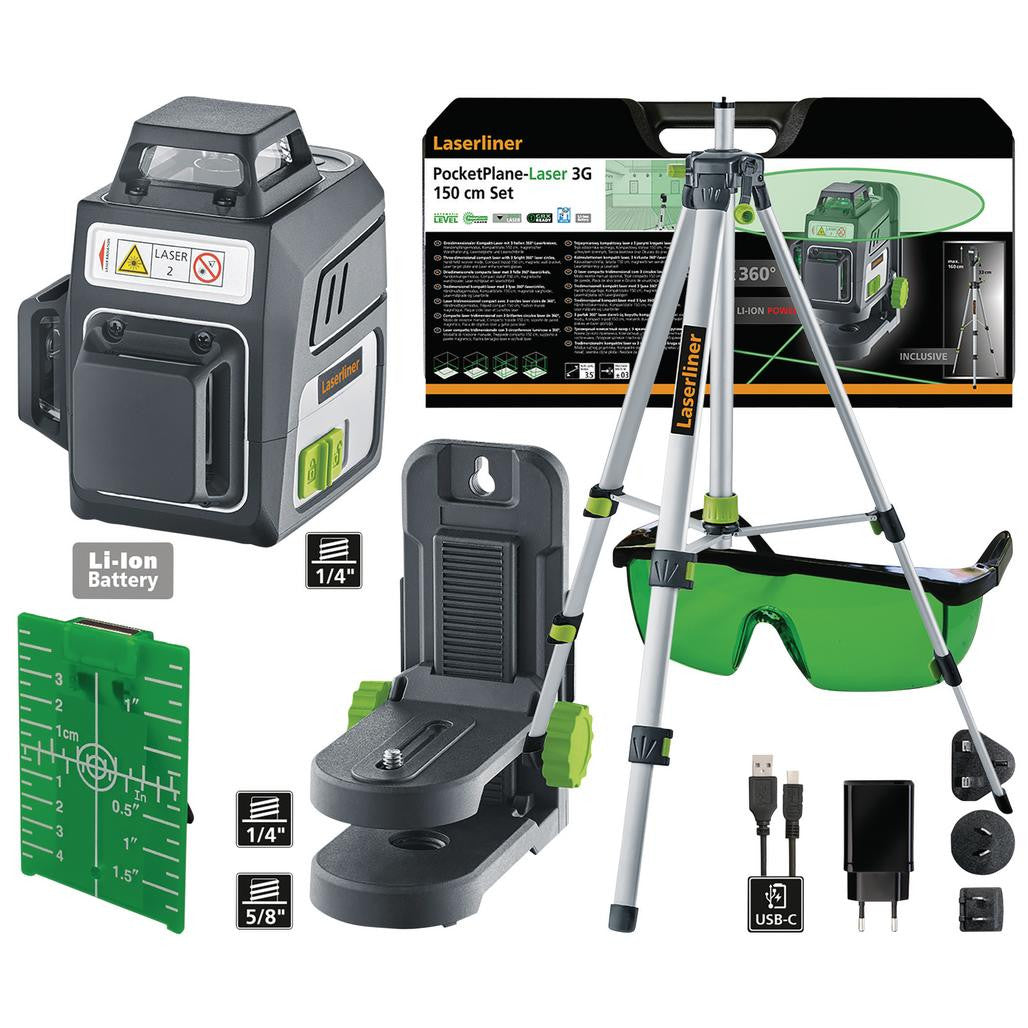

This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery.

  • Three-dimensional laser with a horizontal and two vertical 360° laser circles
  • Supplied with battery
  • Accurate horizontal and vertical alignment of objects
  • Good visibility through green laser technology
  • Easy alignment of slopes with manual tilt function
  • Plumb function for synchronous working on floor and ceiling

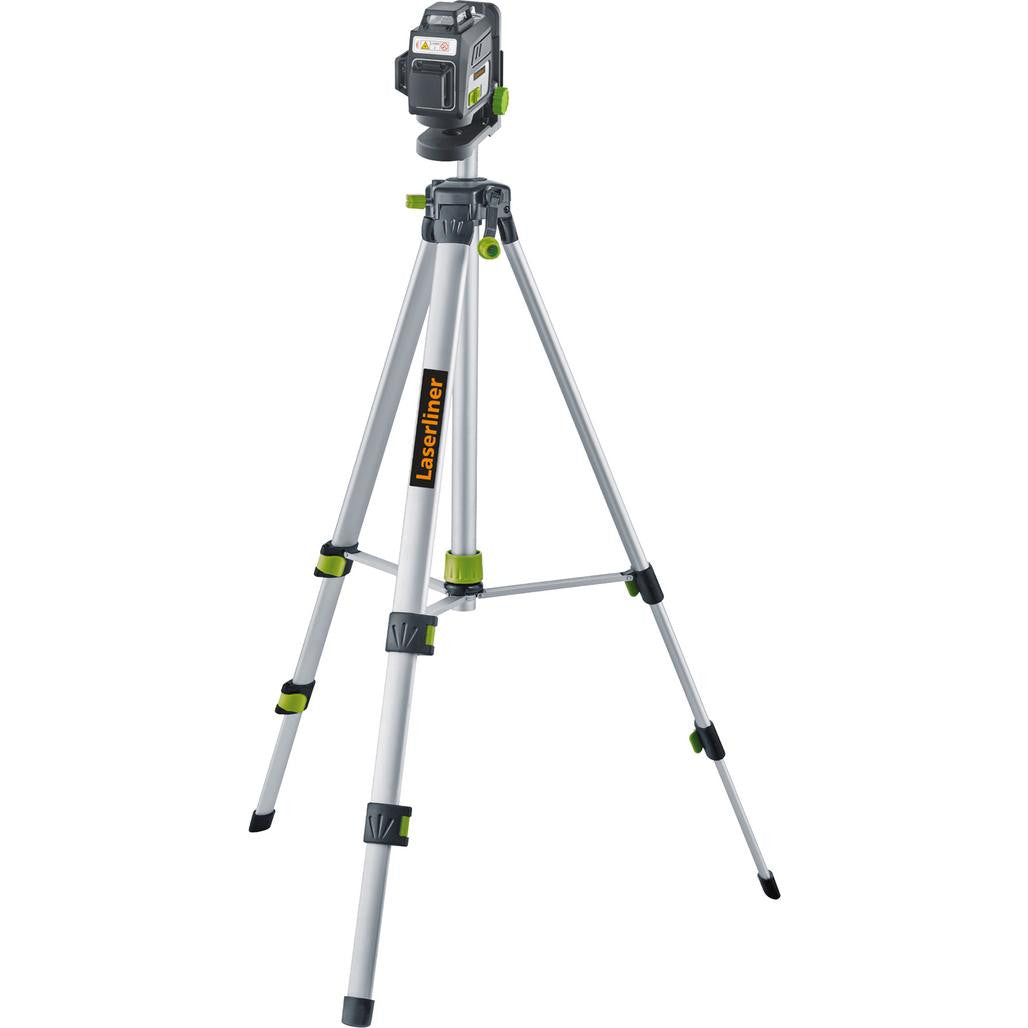

  • Light and robust compact tripod 150cm
  • Crank height adjustment and telescopic tripod legs
  • Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
  • Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings




Horizontal/vertical levelling Yes
Battery and mains operation Yes
Manual slope function Yes
Hand receiver mode Yes
Self-Levelling Range ± 3.5° (horizontal)
Accuracy ±0.3 mm/m
Levelling Automatic
Visibility (Typical)* 30 m
Laser Wavelength 515 nm
Laser Class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh Power adapter 5V / DC / 2A
Operating Time with 3 laser levels: approx. 9 hours
Operating Conditions 0°C … 50°C
Storage Conditions -10°C … 70°C
Dimensions (W x H x D) 104 mm x 97 mm x 76 mm
Weight 388g (incl. Akkupack)
